Hot Rolled Coil / Twin Roll Continuous Casting

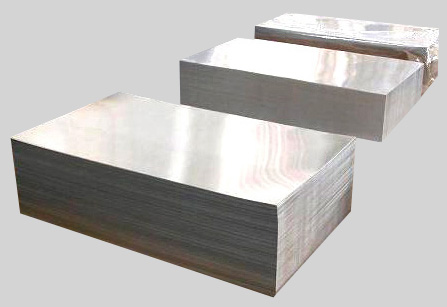

| Sheets |
|
|
| Alloys |
8011,1100,1050,GQ |
| Thickness |
max - 11.5mm / min - 5.5mm |
| Width |
1320mm / 52 inch |
| Length |
min - 10"/ as per customer specification |

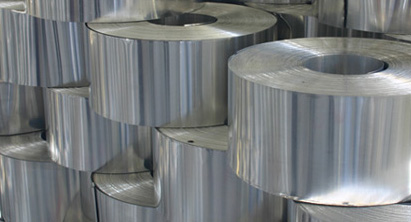

| Coils |
|
| Alloys |
8011, 1100, 1050, GQ |
| Thickness |
max - 7mm / min - 5.5mm |
| Width |
max. 1320mm (untrimmed) and max. 1280mm(trimmed) min. 930mm (trimmed) |
| Weight |
max. 5 ton min. 2.5 ton |
| Arbor |
508mm (nominal) |
| Camber |
+1% of thickness max. |
| Edge-Edge Variation |
0.05 mm |
|
|
